Boostec EFI Xtreme PETROL ECU

Boostec EFI Xtreme PETROL ECU

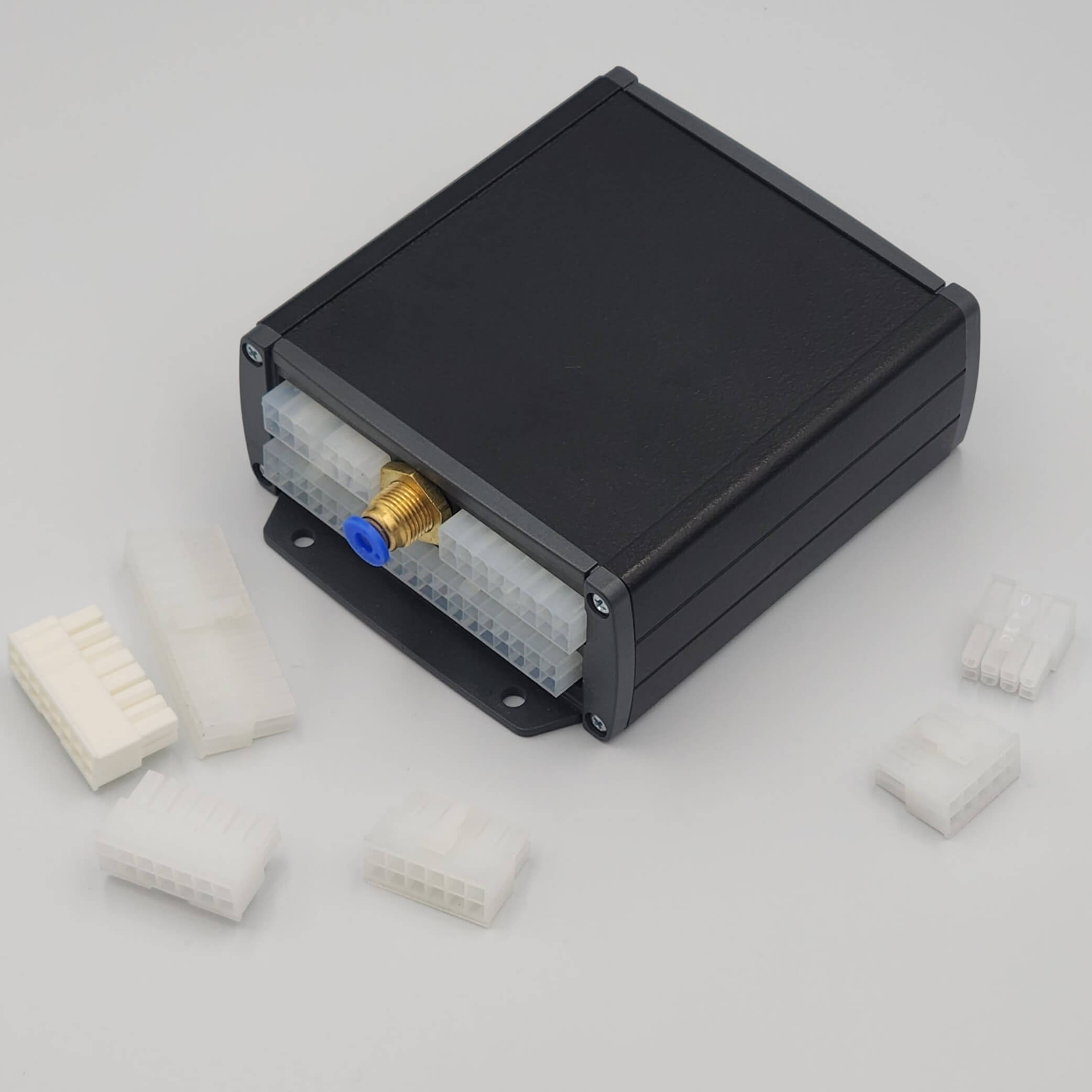

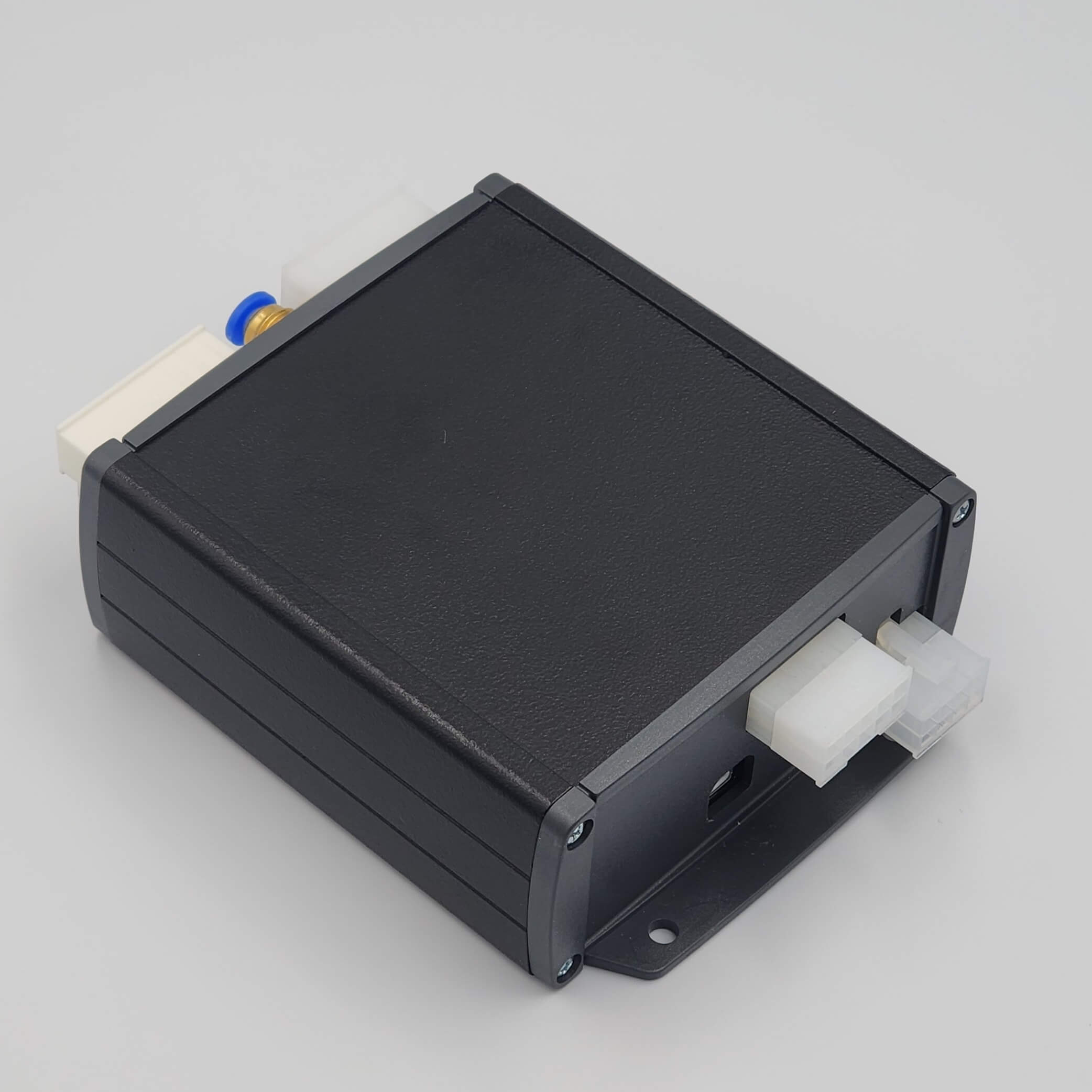

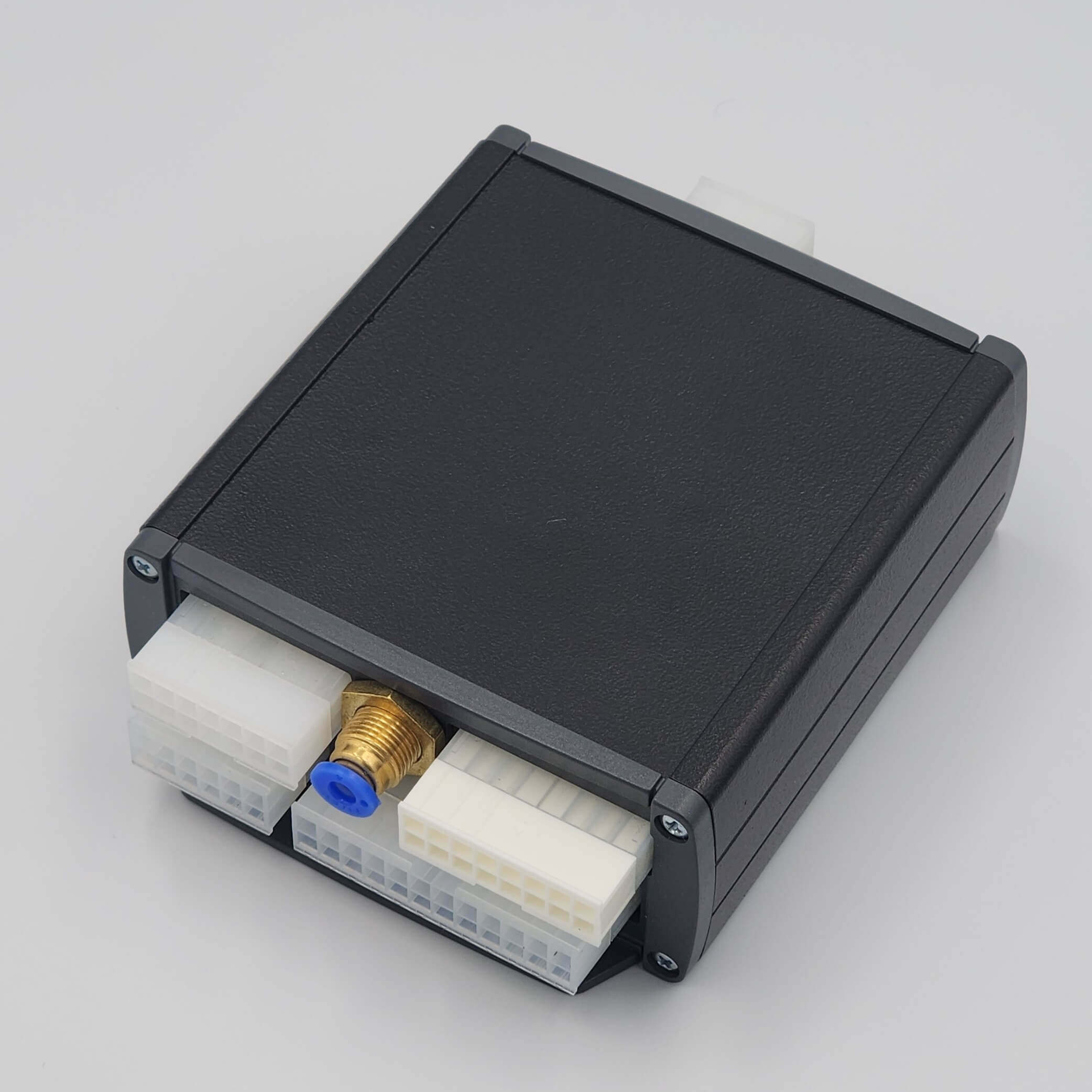

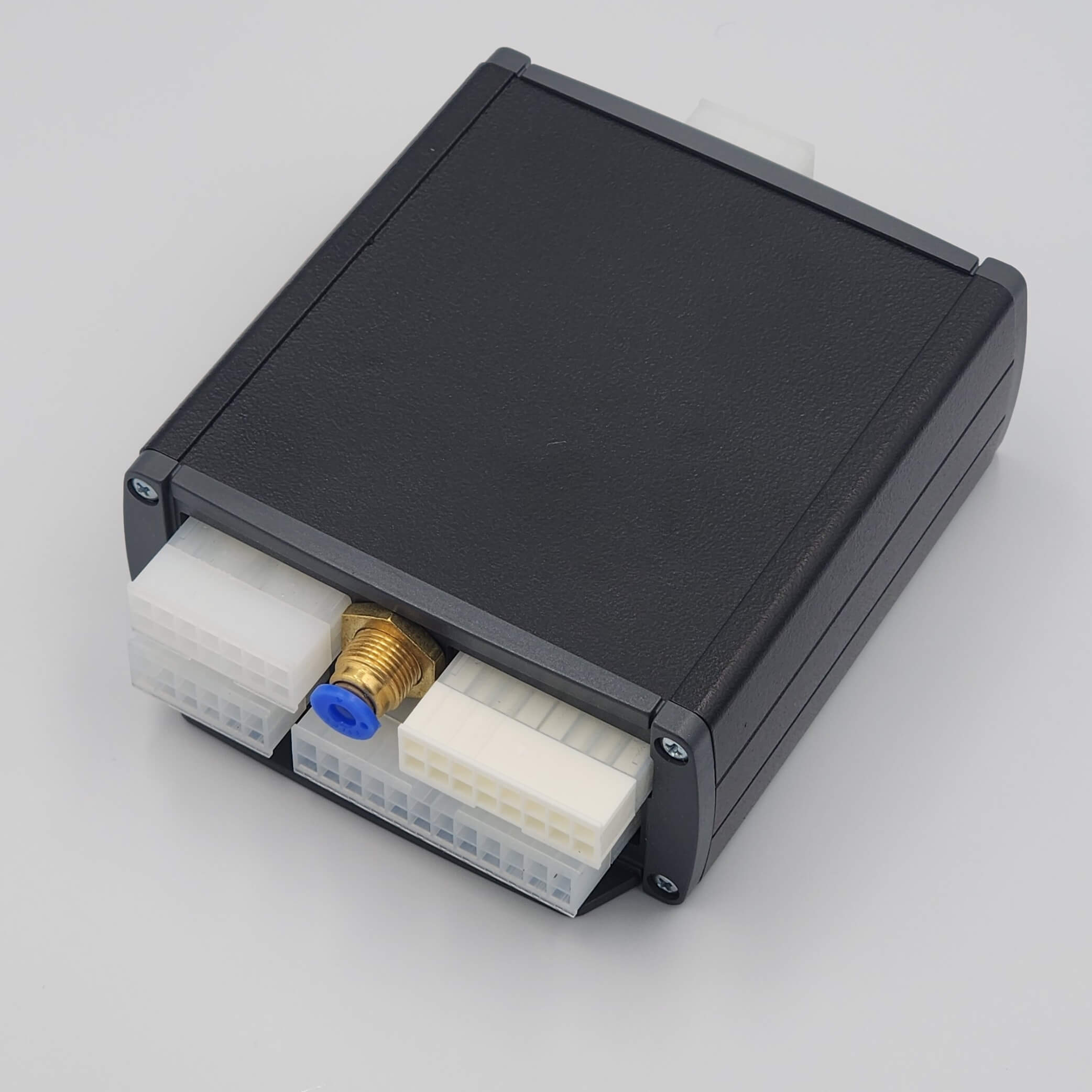

Introducing our BoosTec EFI ProXtreme line-up: The Ultimate Electronic Control Unit for your automotive freedom!

This EFI control unit is capable of controlling up to 8 cylinders including DIRECT INJECTION. The unit is capable of running multiple induction methods (Compound, sequential), different fuels and so forth. Currently we are making adapters for EFI purpose and are starting with the vehicles with the least available solutions.

Seamless Software Integration:

When you choose BoosTec for your vehicle, you receive a comprehensive software package which is not limited to a purchase level. A full engineering capable software backend is available for every ECU. Forget about hidden licensing costs – our commitment to transparency means you have everything you need to get started right out of the box. If you're looking for specific strategy and need assistance in develping it, we do offer solutions at an hourly rate, if its simple enough, we won't even charge for this service!

Our support team is available on most days of the year for your custom project.

Endless Possibilities:

There are no limits to what you can achieve with BoosTec. This unit can be adapted to run any EFI style engine up to 8 cylinders. Need more than 8? No problem! With our dedicated CANBUS link, we can run up to 16 cylinders with 2 units.

Real-Time Customisation:

While other performance changes may take time and involve a startup process of 15 minutes or more to change just simple parameters, BoosTec allows you to make changes on the fly. You can modify everything that makes your engine run, all from a laptop in your car while you drive. No more waiting! And once you're done, just unplug your laptop and everything is saved!

Logging:

Logging is an automatic process, 8GB of internal memory will save your runs for endless hours in either 0.05 (20 times a second for all data) or 0.001 (1000 times a second for selected data) time frames. Where wideband sensors are logged, you can automatically modify tables to hit your targets.

Canbus capable:

If you have a scan tool, you can talk to BoosTec controllers. Even if you don't see your listed sensor, you can add it and it will show up on your scantool!

BoosTec EFI ProXtreme product details:

Live adjustments
-No need to stop to reflash! Watch the changes instantly.
8 dedicated injector capable outputs (5amps max each) (High Z and Low Z capable, some inline additions maybe needed)
8 ignition Logic outputs up to 5v (50mA max) - Passive coil capable (Up to 15amps with BOOSTEC TRANSISTOR MODULE)
12 PWM outputs
- Software configurable for items like Tacho out, boost control, 6 wire stepper motors etc.
2 digital signal inputs 0-5V dedicated to CAM and CRANK.
5 additional digital signal inputs for additional cams, mafs, CHRA speed etc.
1 dedicated mechanical pressure sensor (4 bar) usually used for boost input where no sensor is available
12 analogue inputs for throttle, air temps, coolant temp, lambda, map, switch systems etc.
1 Built in lambda controller for 4.2/4.9 sensors.
2 knock sensor inputs
1 ecu board temp sensor
1 On-board barometric
- For automatic adjustment for atmospheric conditions
8 GB logging
- Either 0.05 sec frames for all variables, or 0.001 for selected high speed logging
2 Can pair inputs/outputs
- 1Mbps, 500k, 250k
12 Month limited product warranty (No chattel warranty)

Typical engines with base maps and Plug'n'play wiring in development:
Mitsbuishi Evo X
Barra

Base maps available for:
Chev v8
Ford v8

Don't see yours listed? Either submit an enquiry or login to your dealer portal to commence production
