8HP LOOM + PCB + TCU

Whats included:

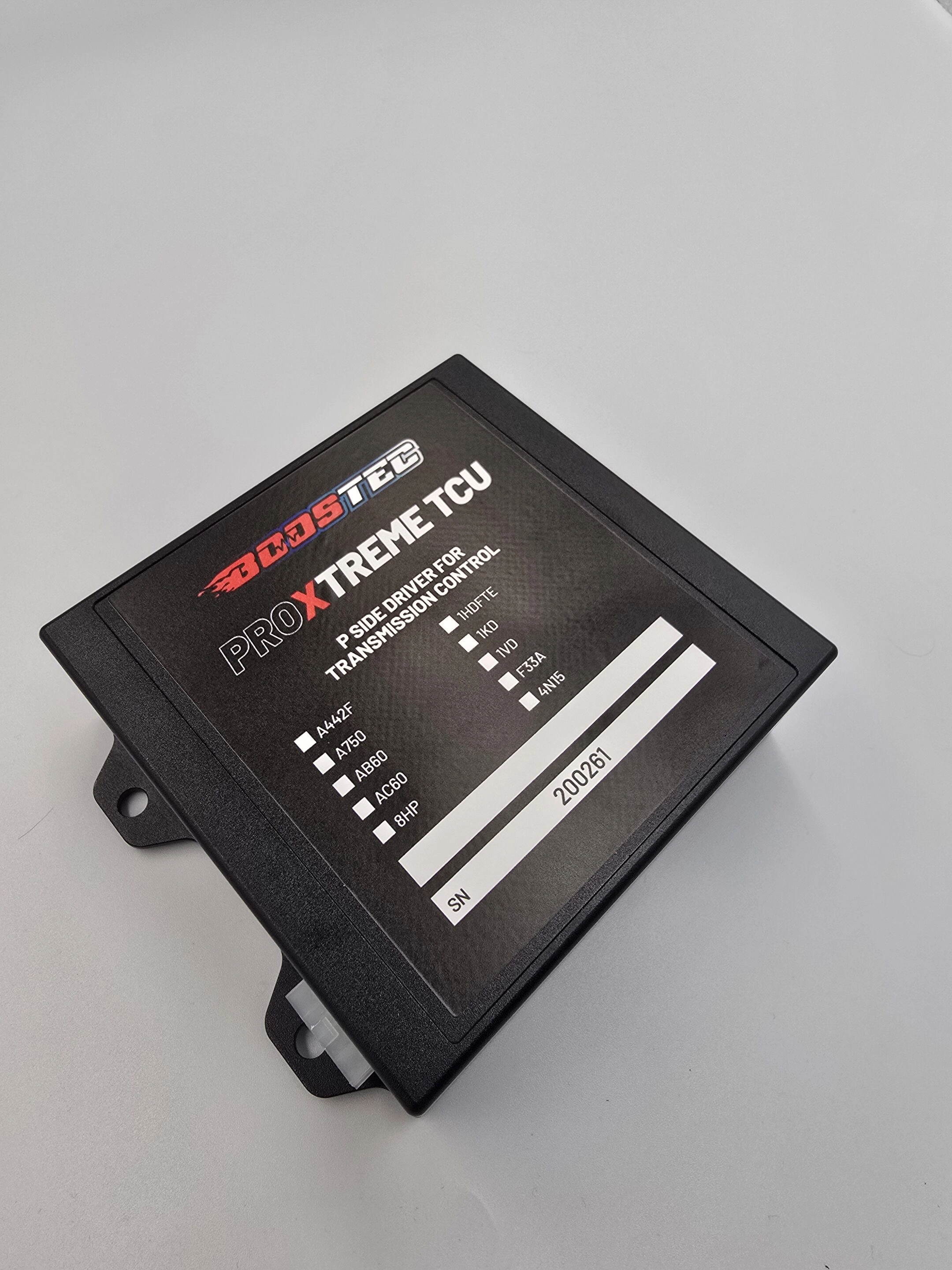

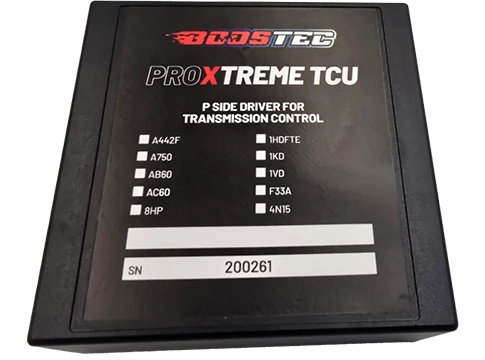

1 x TCU Boostec style (inlcudes hardcase enclosure for MPC4 style controller)

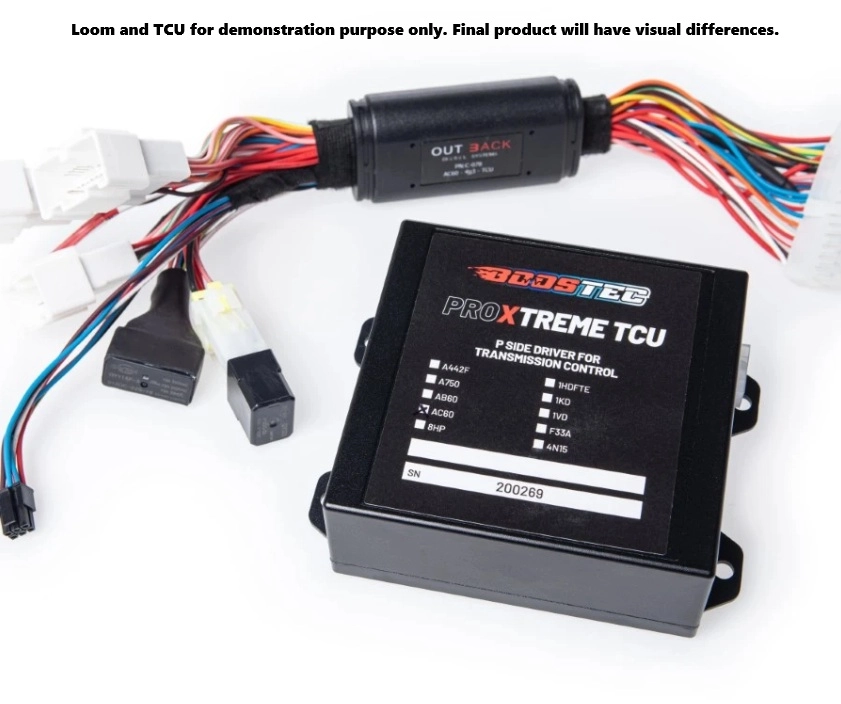

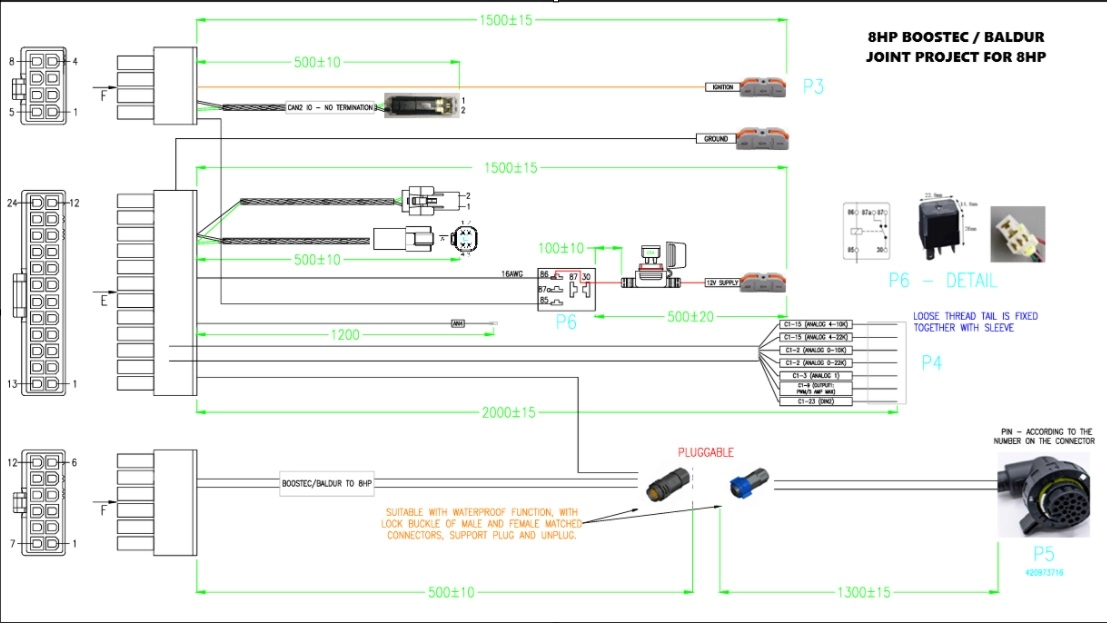

1 x TCU Adapter harness for 8HP (With abrasion resistance)
1 x PCB for transmission
2 x TCU 8hp sensor boards (pre-fitted)

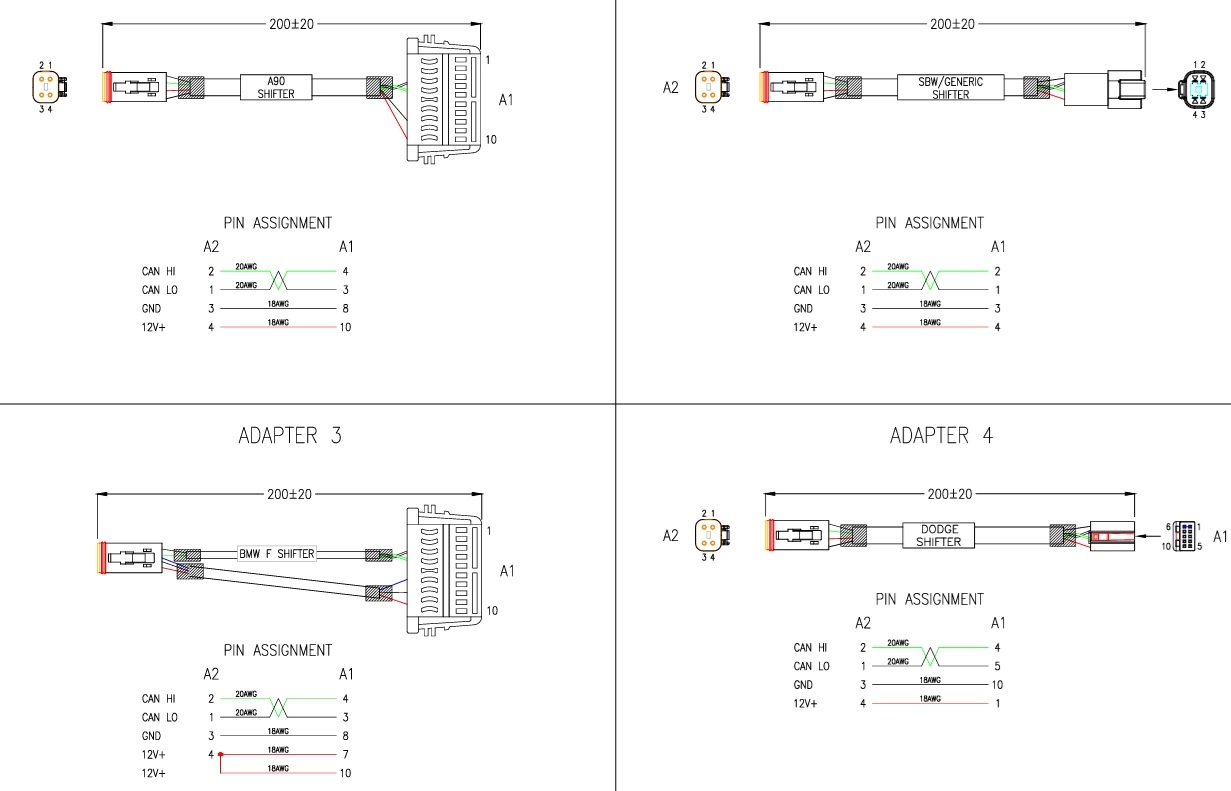

4 x TCU to SHIFTER package looms (Allows multiple shifter combinations)

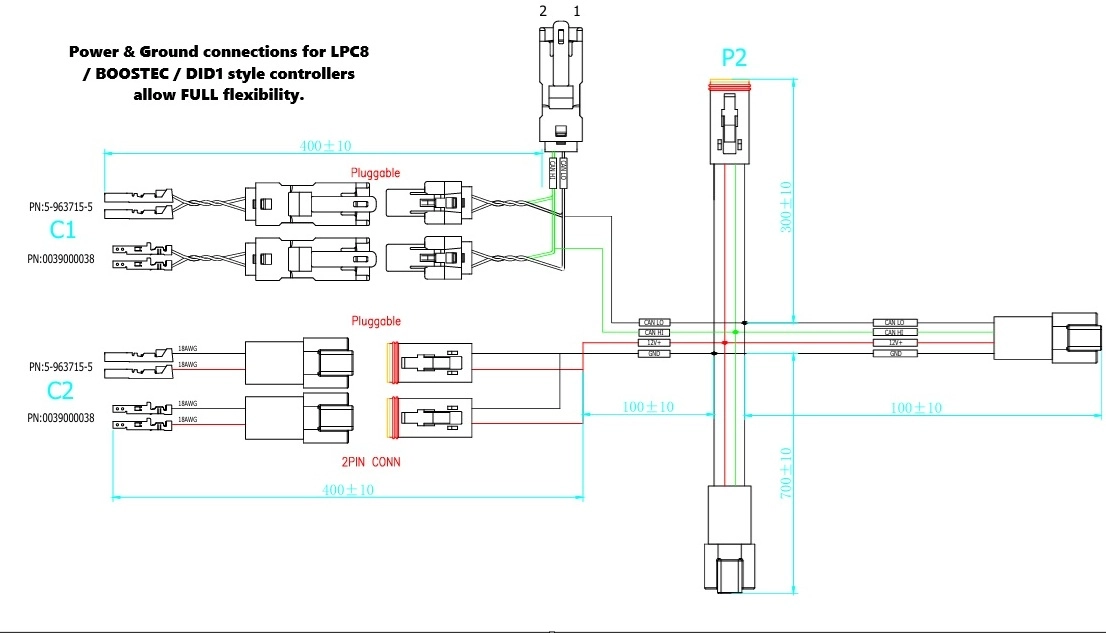

1 x DID1/BOOSTEC distribution harness (Allows plug and play connections to ecu, obd, blink marine and so forth)
5 x AUX connections pre-terminated for your own shifters and outputs
1 x THRU FIREWALL lockable joiner for ease of install

Suitable for all 8hp series using this style of mechatronics:

Conditions of purchase:
Approx. completion date of manufacturing is end of April for looms.
Please be aware the delivery of the complete kits maybe delivered before this date, however the most likely delivery date will be in early May.

No immediate delivery is currently available!

Suitable for:

8HP45 (RWD)
8HP50
8HP55 (AWD)
8HP70 (RWD)
8HP75
8HP90 (RWD)
8HP95
8HP51 (With 8HP50 valve body)

Unsupported Models: 8HP51 and 8HP76 transmissions are not supported.

The controller requires modification of the factory mechatronics, bypassing the internal TCU with a supplied PCB board to connect directly to solenoids and sensors.

Gearbox Types: It is designed to work in various, technically "any," car with the supported ZF 8HP gearbox, including BMW, Jeep, Dodge, and custom motorsports applications.

Recommended maximum torque for standard x70: 900nm (Hardware limited)
Maximum output shaft speed: 9000 rpm (Hardware limited)

Please check our 10r80 listing for supporting higher torque and rpm support (still in beta).
