$160 inc. GST
Isuzu 4jj3 Transmission brace
Isuzu DMAX and MUX transmission support brace to suit 2021-2025 3.0 litre auto vehicles only.

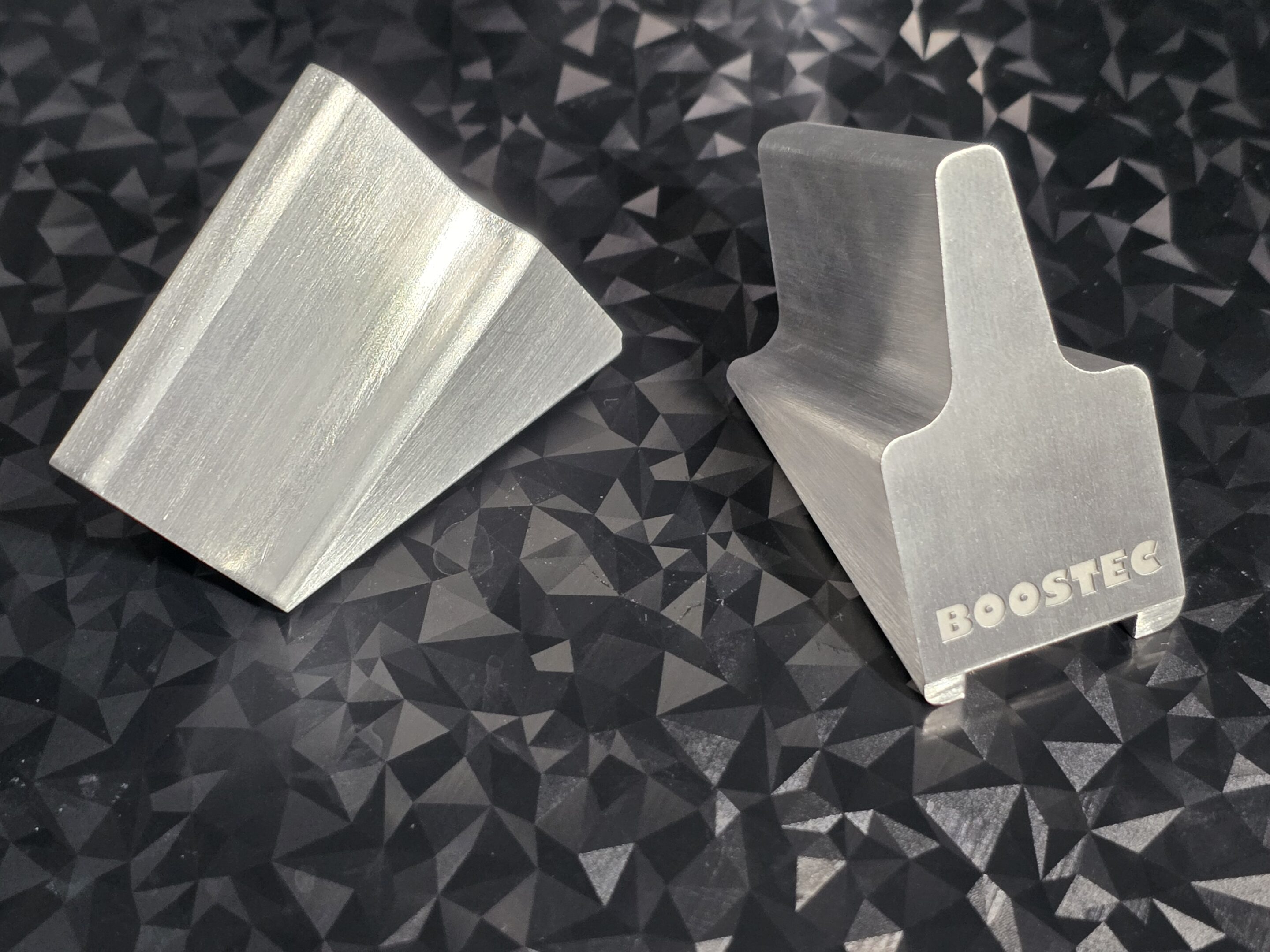

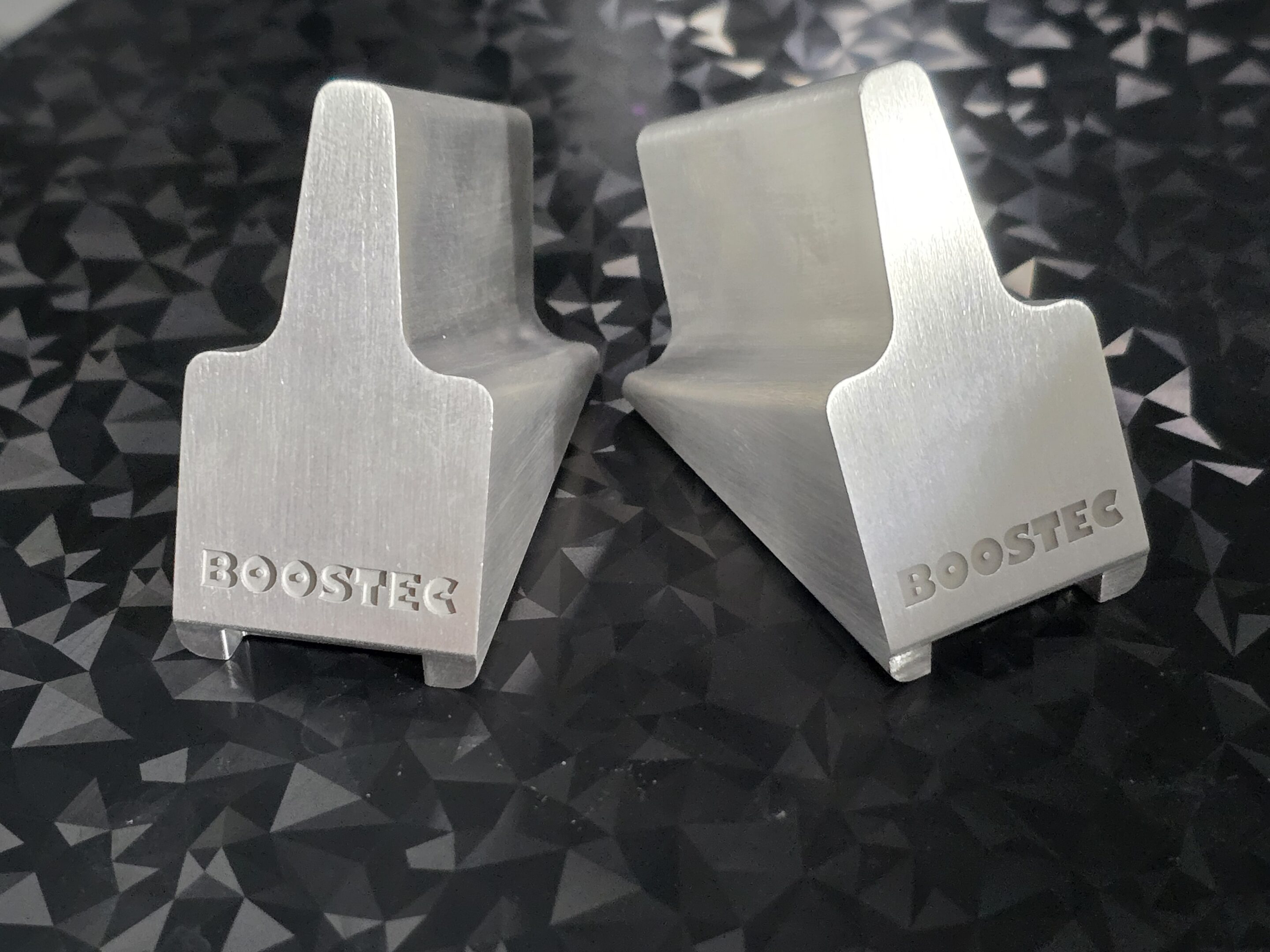

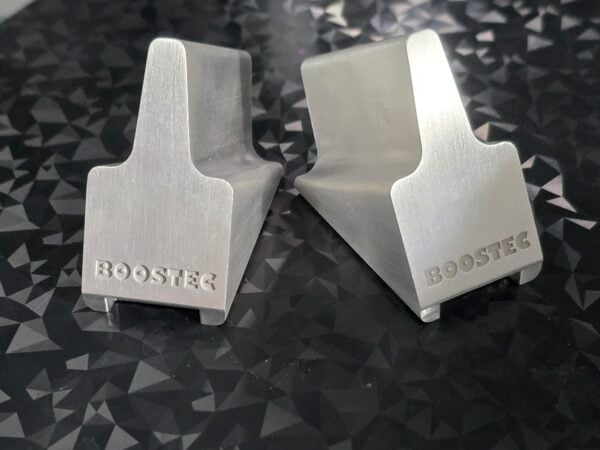

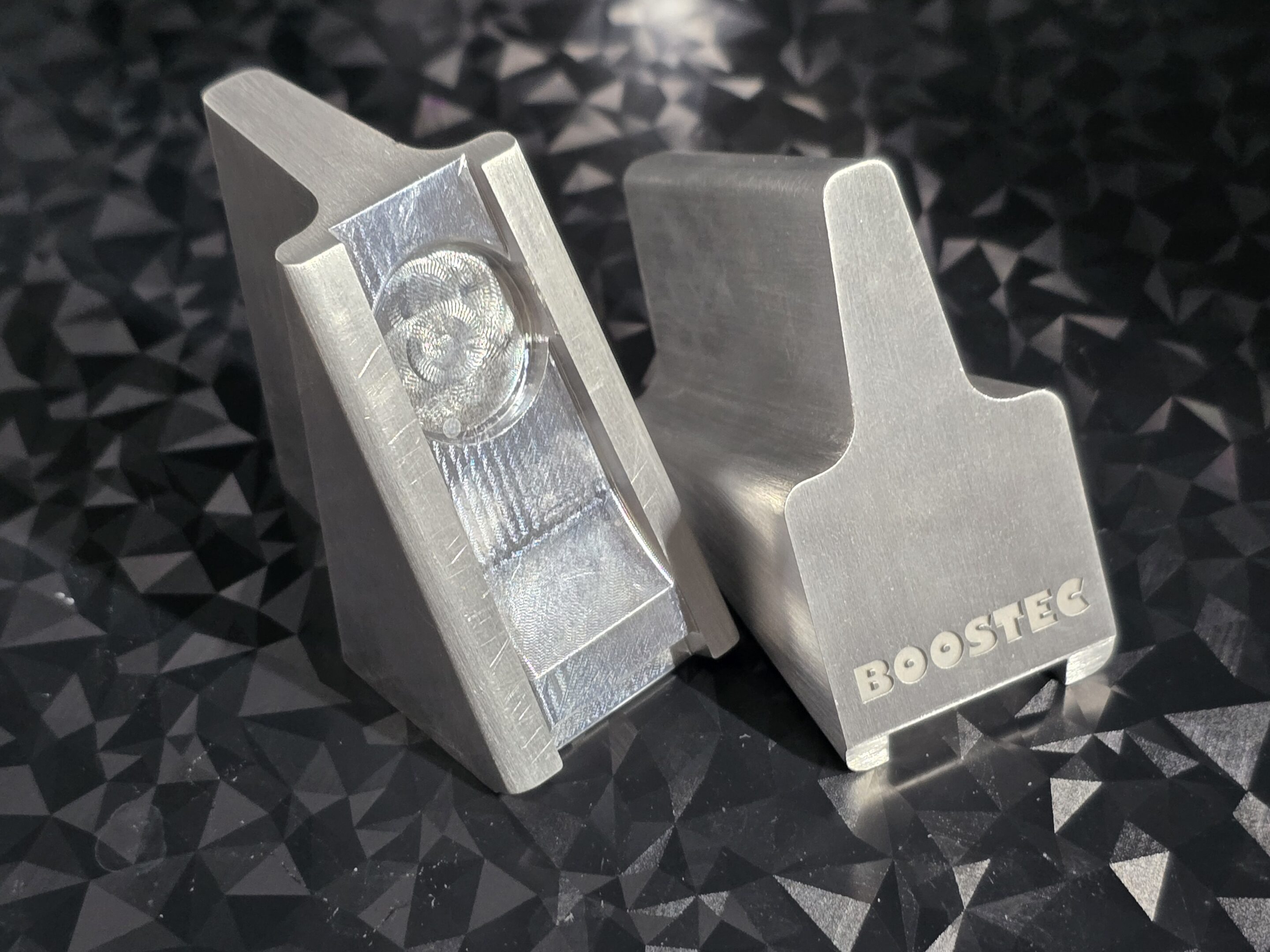

Easy fit, Aluminium billet trans-brace "shoes"!
Once fitted, you can rest assured - As we will replace ANY transmission mount
that fails with our part fitted (In the marked supported areas only), no questions asked for a maximum of 5 years from the purchase date
(Please see below for all T&C's)
A pair is included in this purchase.
A hammer and possibly a sturdy "rift" is required to fit this part, we recommend a 10mm rod for this purpose.
Fitting:
These are hammer-in parts!

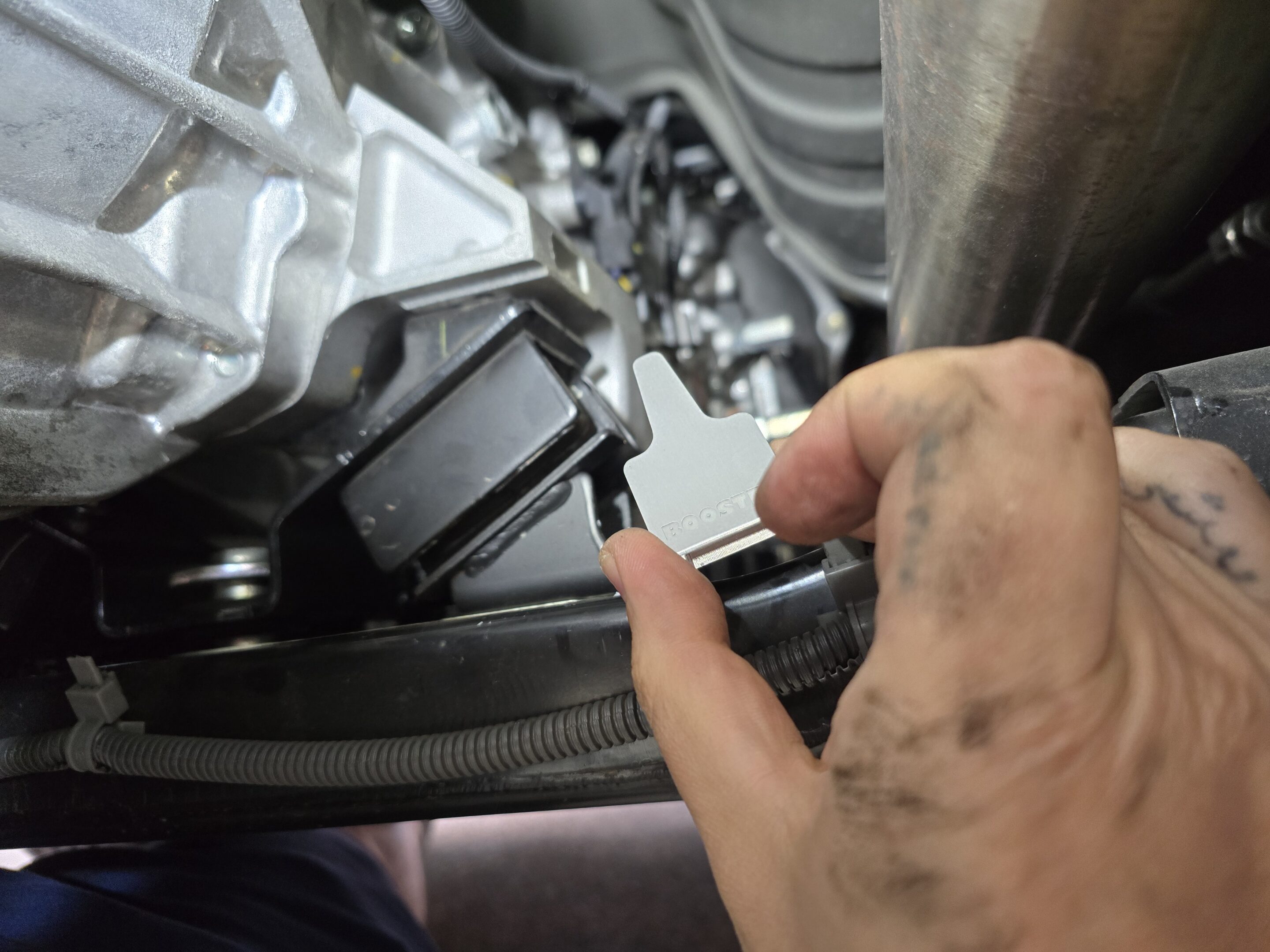

Once hammered in, they self locate over a bolt head.
Removal is possible, but will be difficult to do without removing the trans cross member.
Please check the tightness of your trans mount bolts (3xattached to your cross member) after fitting.
Best option:
These are best off fitted to NEW transmission mounts before being installed in a vehicle.
2nd best option:
If on vehicle already, the 2nd easiest way is with the trans cross member removed.
You will have plenty of room to hammer these in!
Slightly difficult option:

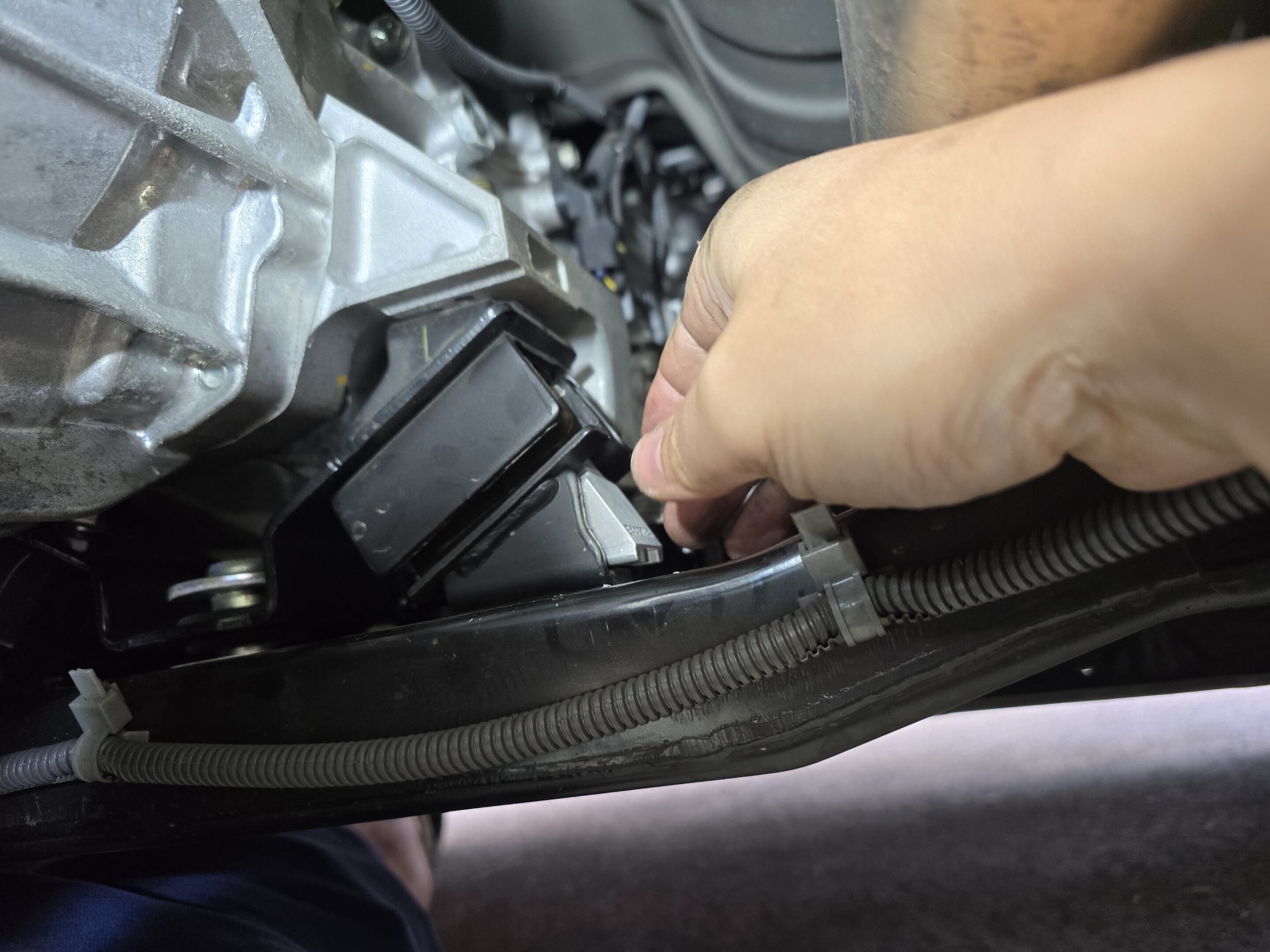

It is possible to install without removing anything to make your life easier. You will require to rift the parts in using a long rod if opting for this method.

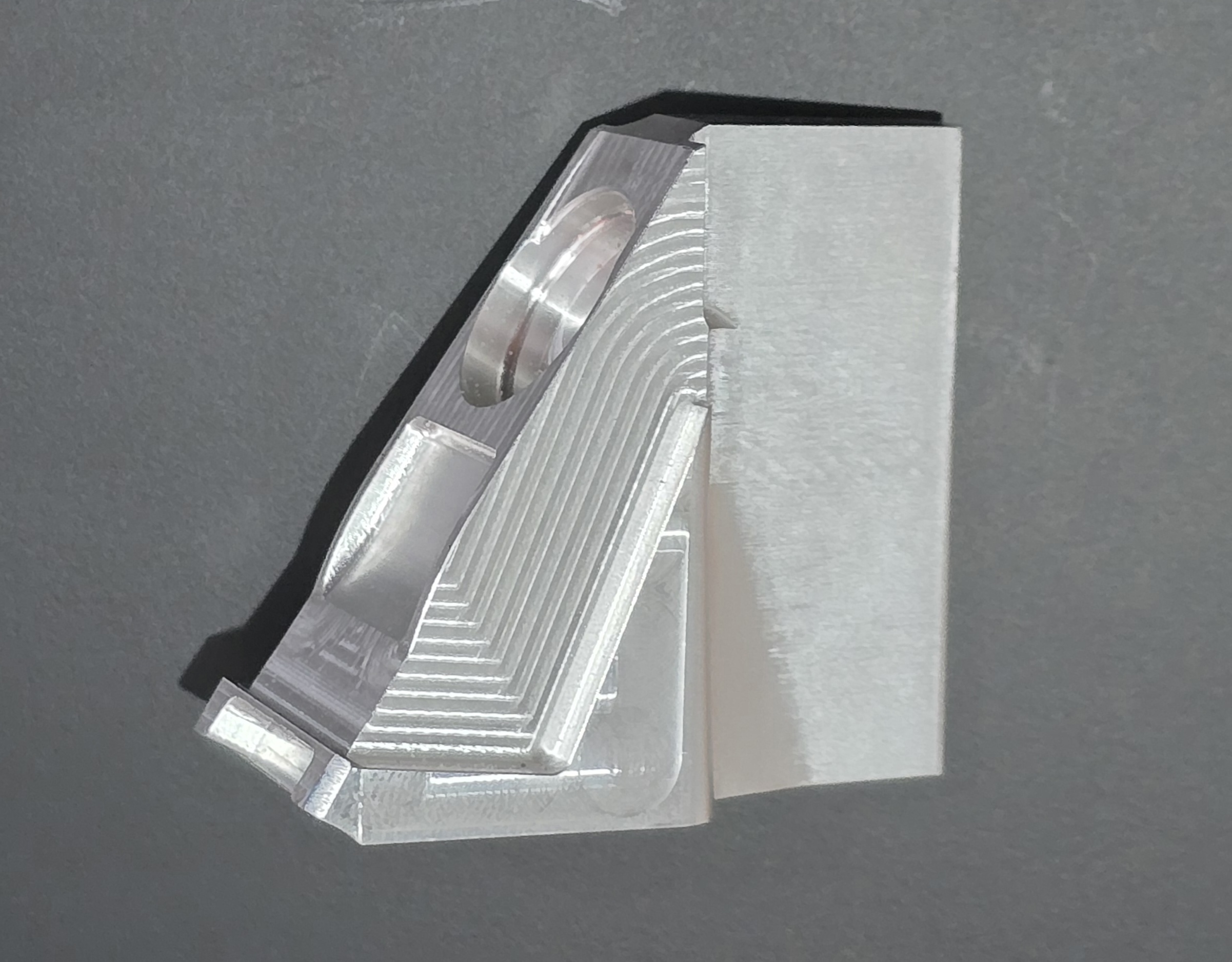

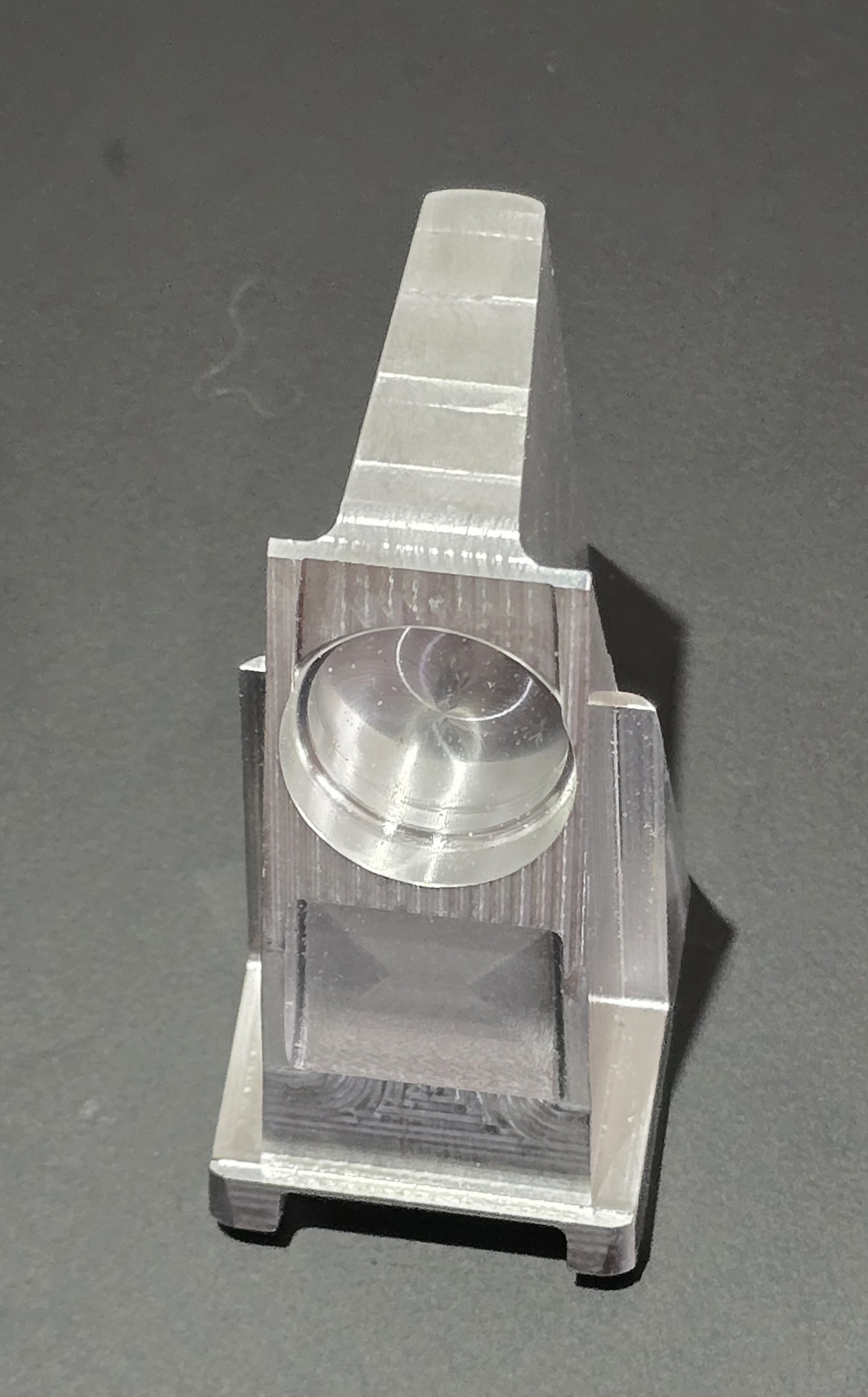

A 12mm locating hole is on the part to make fitting easier if rifting from a distance. A recommended rod size is 10mm x 500mm+, although a 20x3mm rectangular slot is also possible to be used as a point of impact.
About our replacement guarantee:
This does not fix already cracked/damaged transmission mounts, we do have the right to inspect a damaged part before proceeding with a replacement at the cost of the user claiming the service.
To enable our "Replacement guarantee" you will need to send CLEAR photos of your transmission mounts before fitment (In the supported areas), after fitment (In the supported areas)and odometer reading from your dashboard.
The photos will need a date/time or meta data to confirm when they were taken.
You can send them in reply to your order confirmation email.
The guarantee starts from the time the parts are dispatched.
The guarantee is non-transferable and is only for vehicles used on Australian roads.
Damage from other parts to the vehicle are not covered or guaranteed.
No chattel warranty is included.
Parts are fitted at the risk of the user.
Rubber sections/de-lamination of rubber is not covered.
Serious miss-use of vehicle also voids this guarantee (Jumping vehicle, race use etc)
Once fitted, the parts are deemed used and cannot be returned for "as-new" returns.
If transmission mount bolts aren't tight when fitted, please tighten them. No guarantee is possible for bolts that have flexed or worn down.

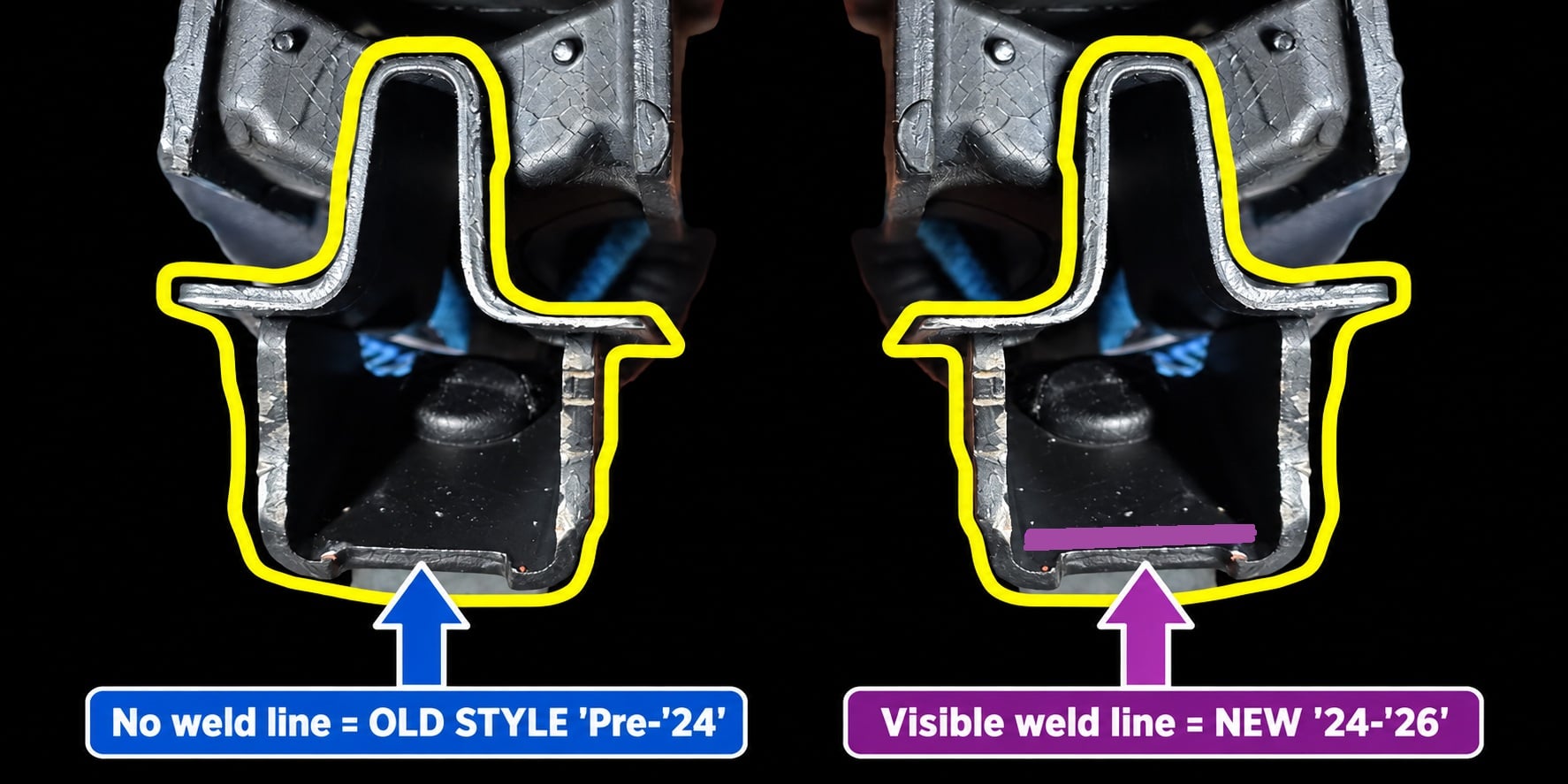

The guarantee period is 3 years for vehicles with 2024 or older purchase date, or 5 years for 2025+ purchased vehicles.

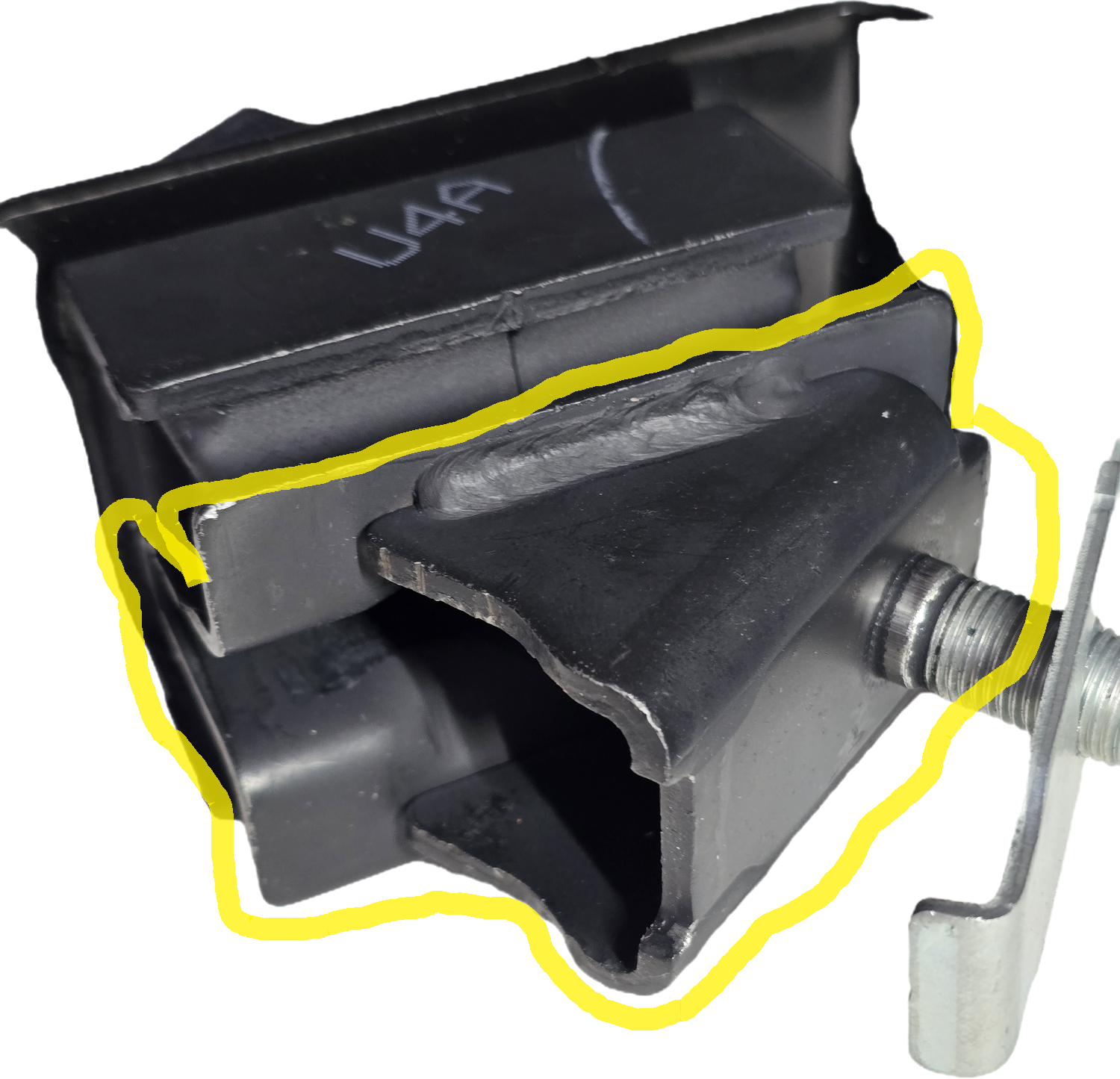

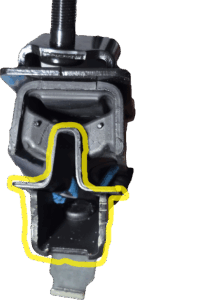

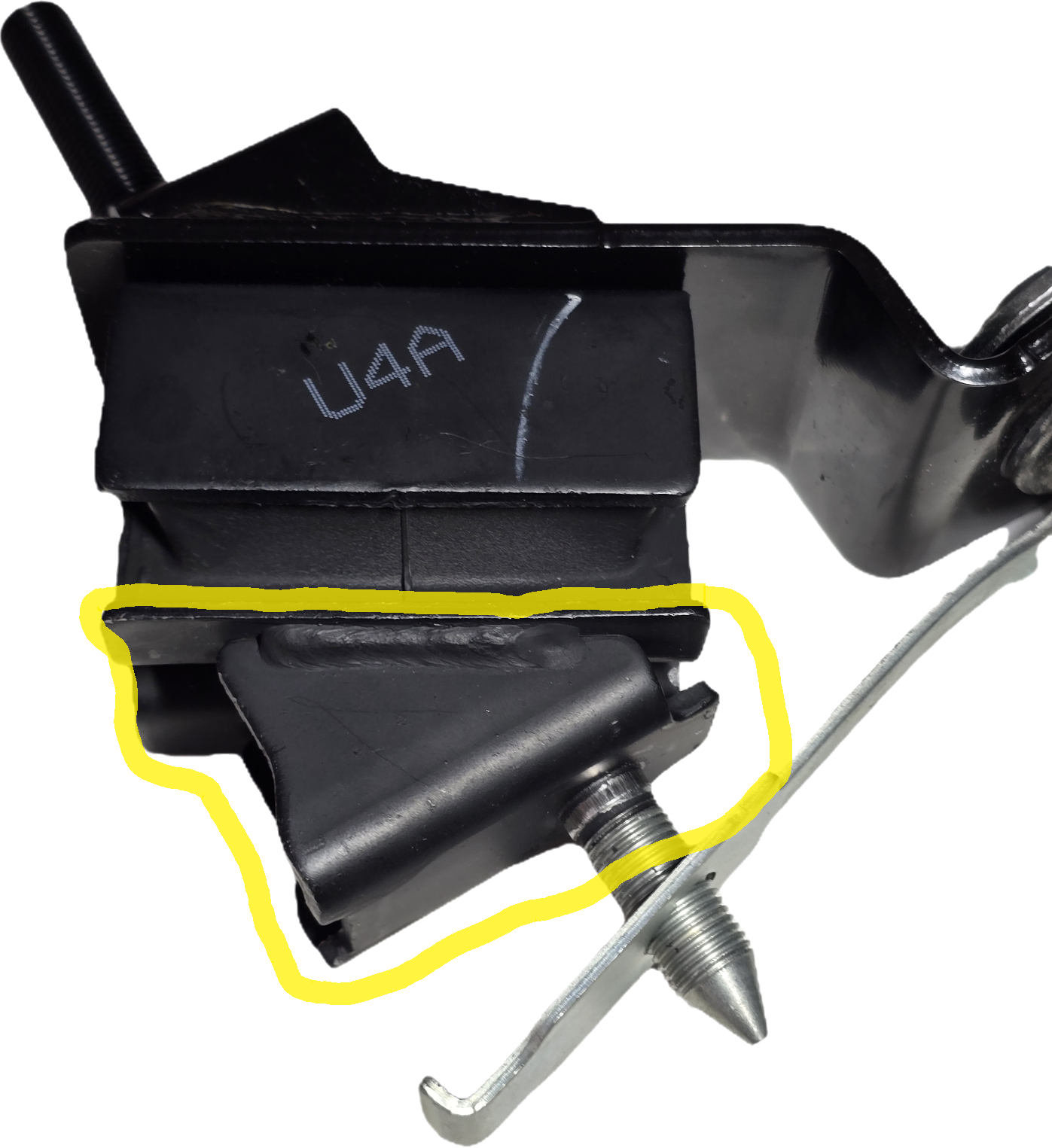

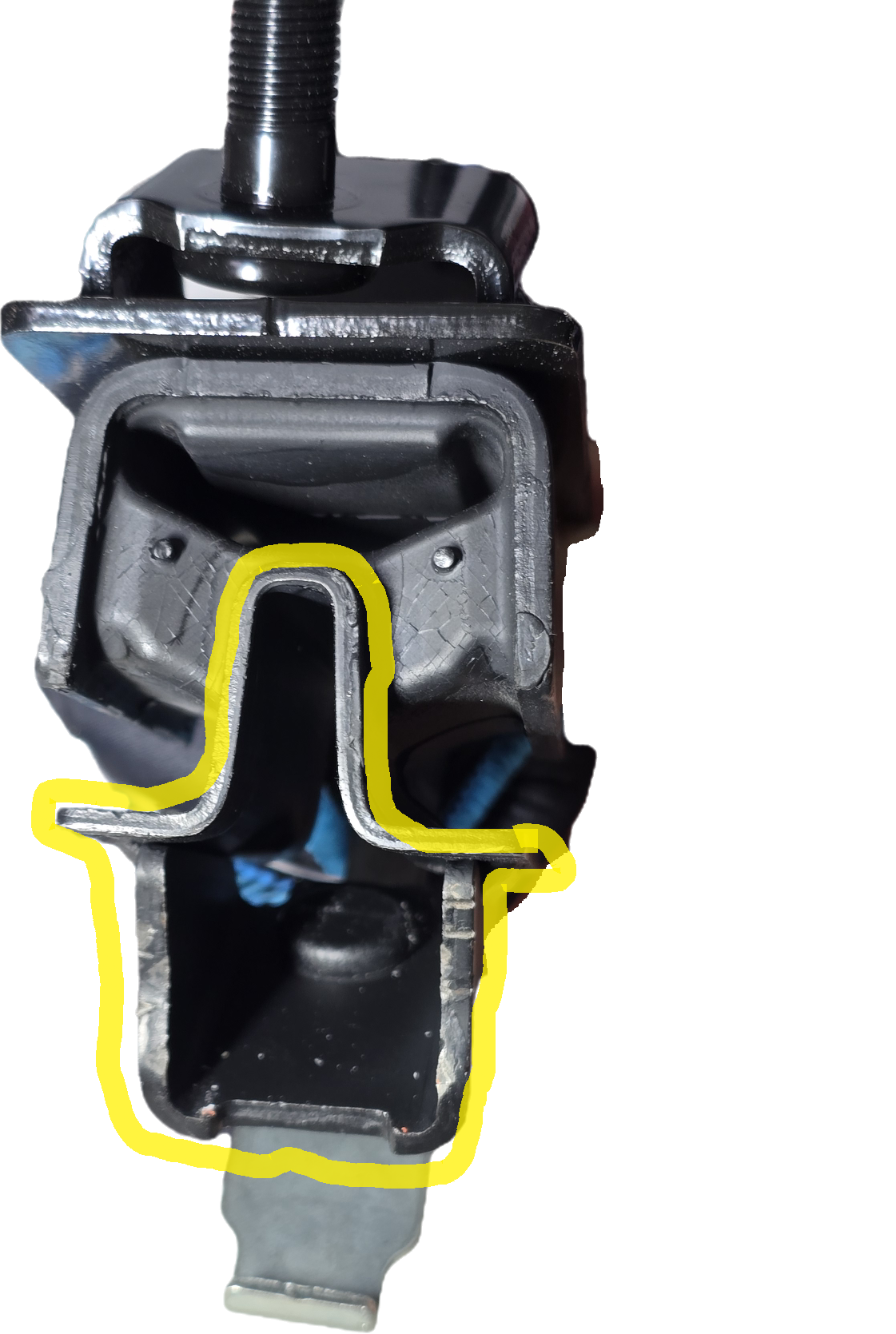

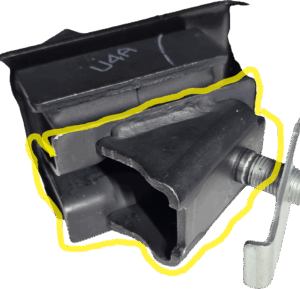

Please see attached photo for the highlighed areas of cover.
